CJ 稠浆式搅拌机
搅拌与分散
CJ 稠浆式搅拌机
通过强力的搅拌形态:搅拌、混合、分散使物料在较短时间内达到要求。

◆ 通过强力的搅拌形态:搅拌、混合、分散使物料在较短时间内达到要求。

◆ 达到产品要求的物料,通过料筒底部的气动阀用输送泵将物料从筒内排出,可直接灌装到容器内。

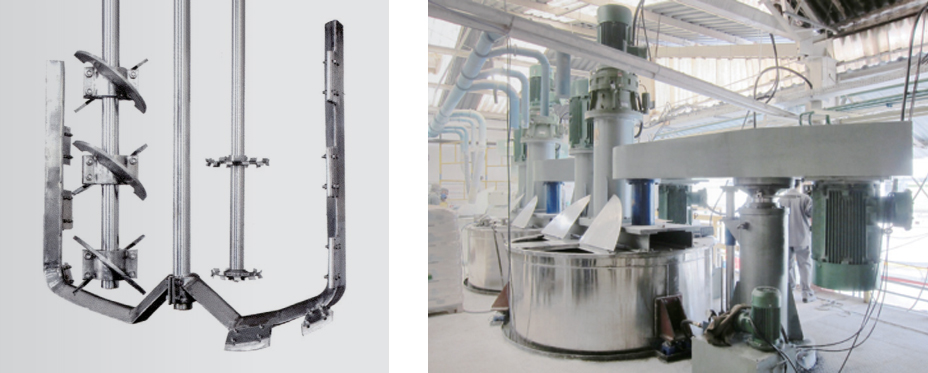

◆ 搅拌器在料筒内壁间有刮料结构,可使较稠的物料通过刮板不粘结在筒壁上。

◆ 使用水性物料时,更换颜色及产品时,冲洗简单。

◆ 采用主机和钢平台的组合结构,可一次性安装到位,方便生产,操作简单。

◆ 主机功率,配备合理,可适应多种稠(厚)浆型产品。


◆ Powerful mixing and dispersing capability to make material meet demand in short time.

◆ Finished material can be packed into container directly via pneumatic valve and transmission pump at the bottom of tank.

◆ There is material collecting device on mixer inside the tank to make tank clear,no material sticking inside the tank.

◆ Easy cleaning when change color and products also for water based material.

◆ Easy installation for combination of main unit and steel platform. Also easy production and operation.

◆ Various main unit power for different viscosity paste material.




规格TypeCJ1M3CJ1.5M3CJ2M3CJ2.5M3CJ3M3CJ4M3CJ5M3

  料缸容积
  Barrel capacity (m3)

11.522.5345

  分散功率
  Dispersing motor (kw)

30-3745-5555-7575-9075-9090-110110-132

  分散轴转速
  Dispersing speed (r/min)

1500150015001200120010001000

  锚式搅拌功率
  Anchor motor (kw)

111518.522222222

  锚式搅拌转速
  Anchor speed (r/min)

30202020202020

  螺旋搅拌功率
  Helix motor (kw)

7.511151518.52222

  螺旋搅拌转速
  Helix speed (r/min)

170170170170170170170
