该机采用双端面机械密封,具有可靠性和耐用性,并配有与研磨物料相容性的冷却液,减少对研磨物料的污染。适用于涂料、油漆、油墨、农药等行业的物料研磨,能将物料颗粒的聚体化,通过强力的研磨短时间内达到要求的细度。操作使用简单,可靠性好,生产效率高,能满足用户的需要。
The machine adopts double-acting mechanical sealing with reliability and durability, mated with the Cooling liquid compatible to the ground material in order to reduce the pollution of ground material, suitable for grinding materials in coating, oil painting, printing ink and pesticide industries. It makes the material into aggressiveness and give the strong grind so that the grains reaches the required fineness in short time. The machine is easily operated with reliability and high production efficiency. Depending to different requirements, the different models of machines can satisfy with customers.

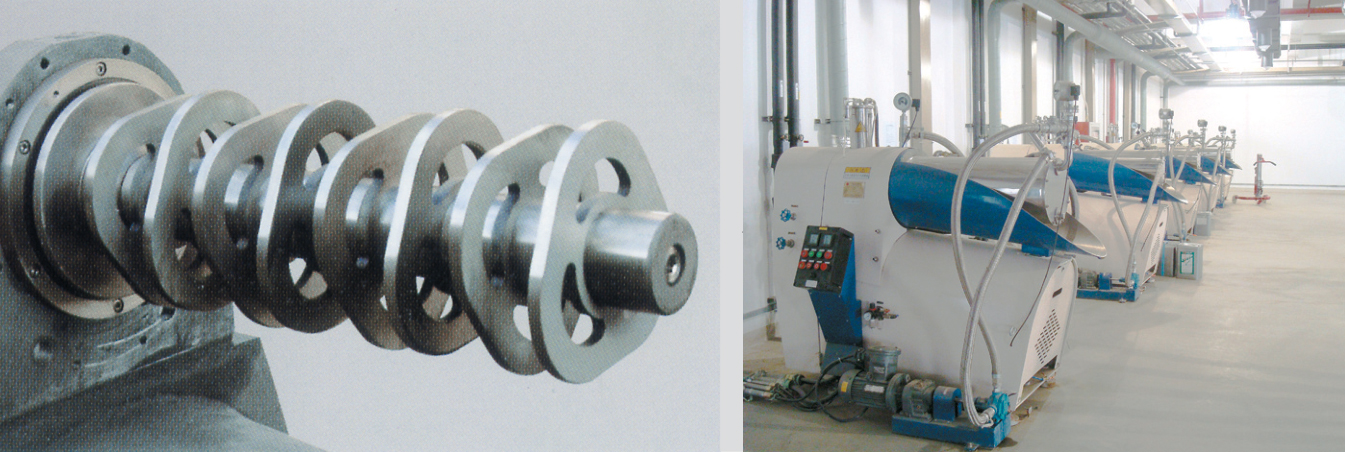

此型式的分散盘在槽孔和多轮廓的作用下,使研磨介质的球体产生强烈的碰撞和磨擦,使物料得到高效率的研磨分散。
The type dispersing disk is functioned by the slot hole and multiplied profiles to produce the strong bump and friction among mediate ball bodies. Therefore, the material can be ground and dispersed in high efficiency.

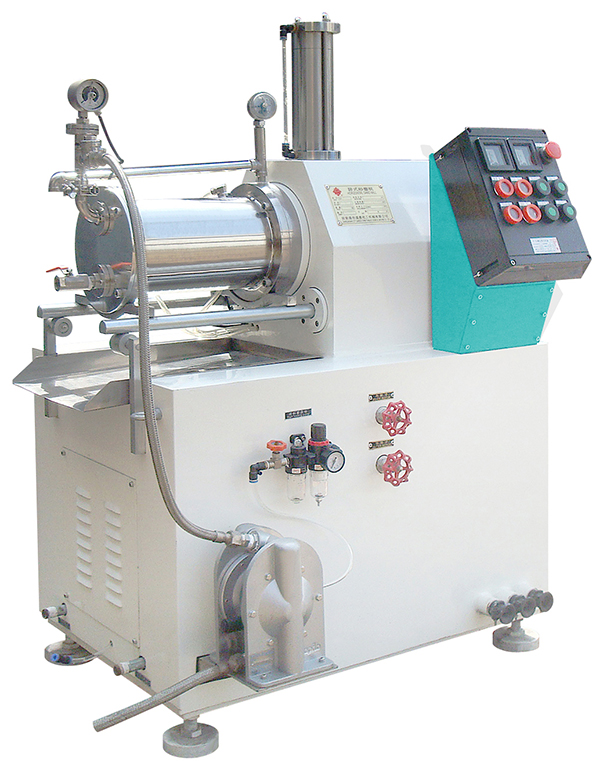

SW-5A卧式砂磨机
规格 Type | SW-5A | SW-15A | SW-20A | SW-30A | SW-50A | SW-250A |
筒体容积 | 5 | 15 | 20 | 30 | 50 | 250 |
电机功率 | 5.5 | 11 | 18.5 | 22 | 37 | 75 |
产量范围 | 20~100 | 30~200 | 40~300 | 50~600 | 100~1000 | 1500~2000 |
分散细度 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 |
输送泵形式 | 隔膜泵/齿轮泵 Diaphragm pump/ Gear pump |
