XJB Series Planetary Mixer
Mixing and dispersion
XJB Series Planetary Mixer

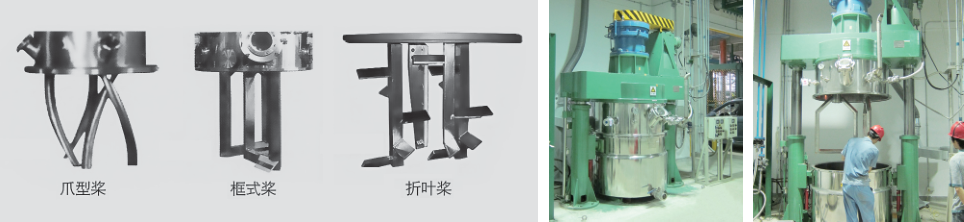

Tonghui planetary mixers blades rotate the same time make revolution movement, so material will be complex movement.

Tonghui planetary mixers blades rotate the same time make revolution movement, so material will be complex movement. They are widely used in high viscosity, cream type material mixing, vulcanization, dispersing, polymerization processing. Our mixers have high performance & easy discharging without mixing blind spot.


Tonghui planetary mixers are widely used in industries: silicone sealant, PU sealant, machinery sealant, liquid silicone, RTV, Electronic sealant, ink, pigment, dye, electronic paste, resin, plastic, tooth paste etc. Viscosity range from 10,000cps~8,000,000cps.



型号 TypeXJB-5XJB-300XJB-500XJB-1000XJB-2000

  缸体容积
  Design volume (L)

530050010002000

  投料容积
  Feeding volume (L)

31803006001200

  电机功率
  Motor power (Kw)

1.1~1.511~18.518.5~3737~5545~75

  公转转速
  Revolution speed (rpm)

0-600-600-500-400-40

  自转转速
  Rotate speed (rpm)

0-1300-850-700-600-60

  真空度
  Vacuum (Mpa)

-0.098-0.098-0.098-0.098-0.098
