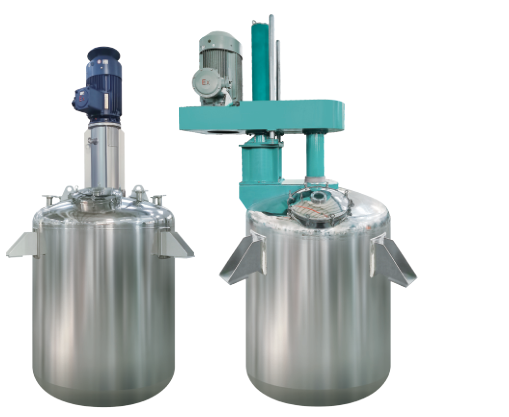

Suitable for mixing, dissolving and dispersing liquid to liquid and particulate wetting in an enclosed vessel. Minimum solvent loss, and fast powder intake results in high quality dispersions.
Excellent for coatings, dyes, pigments, paper, adhesives and chemicals. Low volume air intake at the cortex results in evenly dispersed products.
| 规格 Type | FF0.5M3 | FF1M3 | FF2M3 | FF3M3 | FF4M3 | FF5M3 | FF6M3 | FF10M3 | |
| 电机功率 Power (kw) | 11 | 15 | 30 | 37 | 45 | 55 | 75 | 110 | |
| 分散轴转速 Speed (r/min) | 0-1450 | 0-1450 | 0-1450 | 0-1450 | 0-1450 | 0-1450 | 0-1450 | 0-1000 | |
| 料缸容积 Capacity (m3) | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | 10 | |
| 调速形式 Speed contriol mode | 电磁调速/变频调速 | 变频调速 Inverter Control | |||||||
| 分散盘直径 Disc diameter (mm) | 250 | 300 | 350 | 380 | 400 | 450 | 500 | 550 | |
| 外形尺寸 External Dimensions(mm) | D | 800 | 1000 | 1450 | 1500 | 1600 | 1800 | 1900 | 2200 |
| H | 1000 | 1250 | 1575 | 1880 | 2180 | 2235 | 2360 | 2820 | |
| H1 | 850 | 1170 | 1380 | 1480 | 1570 | 1690 | 1740 | 1850 | |
