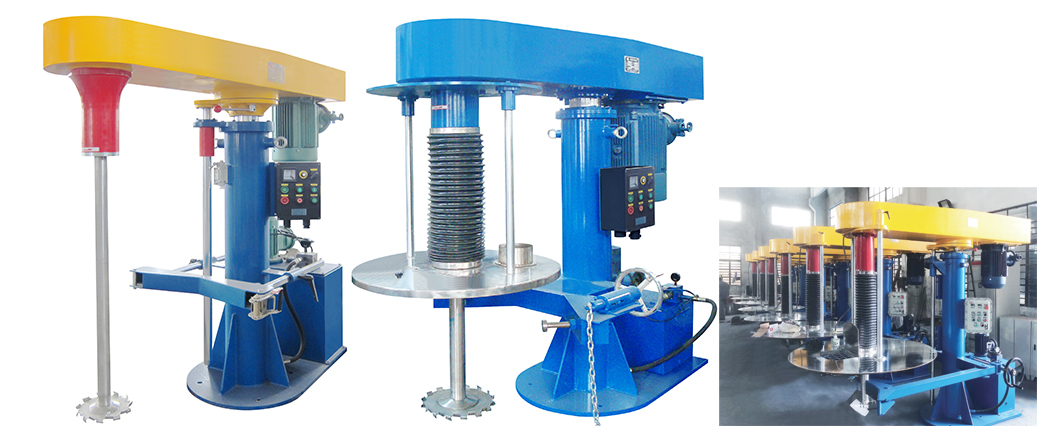

GFJ high speed dispersion machine
Mixing and dispersion
GFJ high speed dispersion machine
It can mix, dissolve and disperse two or more kinds of liquid and powder material. It can both works single and together with some other sand grinder.

It can mix, dissolve and disperse two or more kinds of liquid and powder material. It can both works single and together with some other sand grinder. Suitable for producing paint, ink, coating, dyestuff, paper making and so on in chemical industry, the mixers are used for wet dispersing and mixing liquid-solid material. Non-grade speed adjustment by frequency converters, hydraulic elevating, working steadily, use and maintenance expediently.



规格 Type

GFJ1.5
Model A

GFJ4
Model A

 GFJ5.5-7.5 (GFJ11)
Model A

GFJ22 (GFJ30)
Model A&B

GFJ37
Model A&B

GFJ45-75
Model A&B

GFJ90-200
Model A&B

  电机功率 Motor power (kw)1.545.5-7.5 (11)22 (30)3745-7590-200
  分散轴转速 Speed (r/min)0~14500~14500~14500~14500~12000~12000~1000
  分散轮直径 Diameter (mm)150200250350400450600
  升降行程 Lift (mm)80080090012001200~15001500~20001800~2800
  泵功率 Pump power (kw)0.550.550.751.51.52.23
  罐容量 Capacity (L)50200400~600600~10001000~20001000~25005000~8000
  重量 Weight (kg)3604008001500170021002600~3000

  外形尺寸
  External Dimensions (mm)

A1260126017702140214026002700
B1340130017002260226028003000
C6006009001100110012001600
Wide46046058080080010001000
